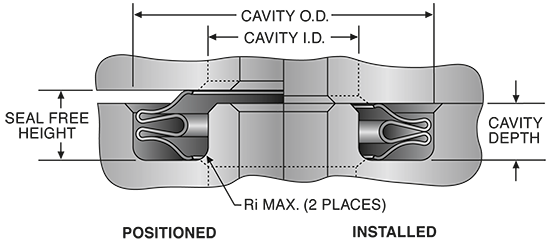

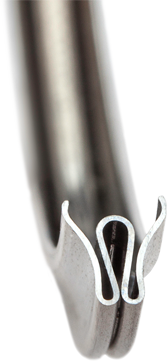

JETSEAL is on the cutting edge of sealing technology with the uniquely designed and patented Lever Seal. The Lever Seal is superior to other “high deflection” seals available. Due to its unique stress-distributing design, the Lever Seal can handle three times the flange movement of a single-ply standard E-Seal with the same sealing capability without modifying the original cavity.

The Lever Seal is a good choice where thermal relaxation is a factor. This seal can be used in any application where enhanced spring back and excessive flange movement or flange distortion handling is needed. The Lever Seal will outperform any other seal at a competitive cost.

Multi-Convolution Seals

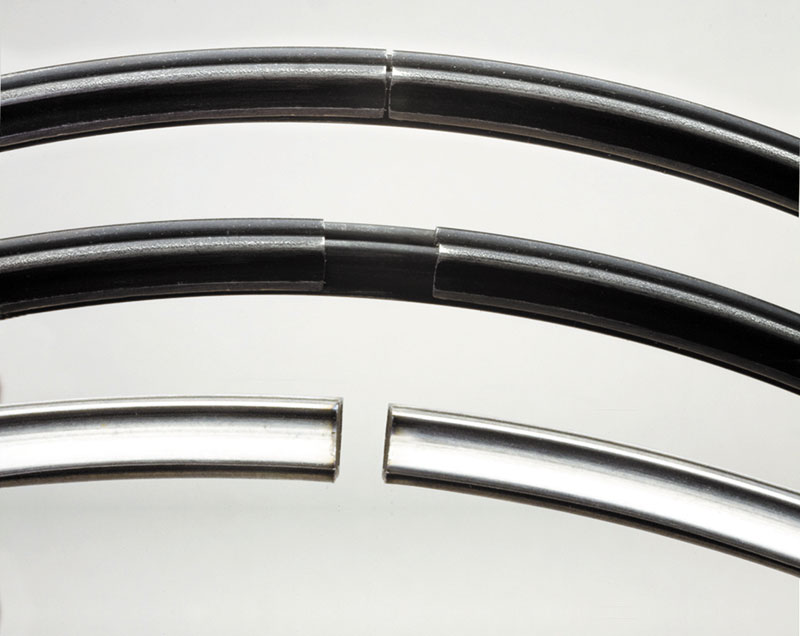

Leakage rates for split style Multi-Convolution Seals are improved by incorporating a Non-Welded Slip Joint Cover in flange applications that experience large radial growth due to thermal cycling.

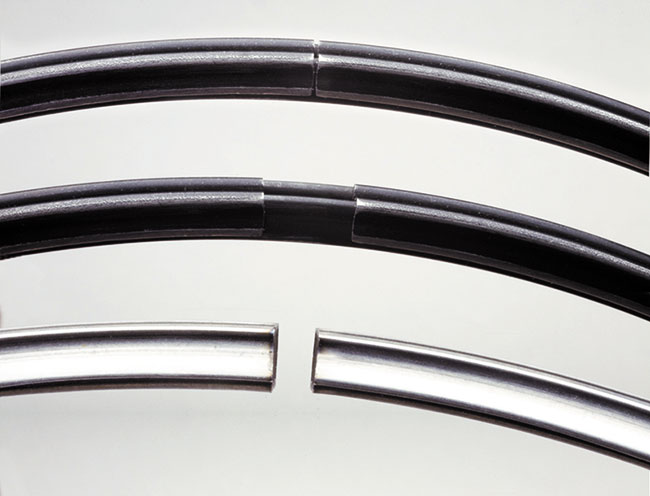

JETSEAL employs a patented Non-Welded Slip Joint for improved sealing. Some metal seals designed with a welded slip joint cover may crack at the weld and increase the leakage rate.

JETSEAL's patented Slip Joint reduces leakage to the smallest effective value at the seal's split line and eliminates part failure due to cracked slip joint cover welds.

JETSEAL's Non-Welded Slip Joint also eliminates the potential for foreign object damage (FOD) from failure of traditional welded slip joint covers.

For more specifics, download our Lever Seals Catalog (PDF).

Operating Conditions:
  • Operating pressure range:.............Vacuum (1E-10 torr.) to 10,000 psi
  • Functional temperature range:.......Cryogenic to 1300°F (704°C)
  • Typical leakage rate:......................1E-3 sccs He/mm circ.
Metallic Options:
  • Alloy 718 (AMS 5596, 5589, 5662)
  • Alloy X-750 (AMS 5598, 5582, 5667)
  • Waspaloy (AMS 5544, 5706, 5586, 5708)
  • Other metallic materials are available
Plating/Coating Options:
  • Silver (AMS 2410, 2411)
  • Tin (ASTM B545)
  • Nickel (AMS 2403, 2424, QQ-N-290)
  • Gold (Mil-G-45204)
  • PTFE (AMS 2515)
  • Plasma/HVOF wear coatings
  • Other plating options are available

Please call for pricing and availability or fill out the Application Data Sheet (PDF) and Quote Request Form.

Application Data Sheets are available in Spanish, French, German, Russian, Korean, Chinese, Japanese, Farsi, and Hebrew from JETSEAL's Downloads or Contact Us page.
